MTNGear Tripod and Bipod Carbon Legs

MTNGear Tripod and Bipod Carbon Legs

$60.00 NZD
$60.00 NZD
Sale Sold out
Tax included.
Length

Product Barcode / SKU: 14928699

MTNGear's range of new Tripod and Bipod range will have interchangeable legs. This will allow you to customize your stability device for your particular application and make it more economical to do so.

This is our growing range of carbon twist lock carbon leg options.

Leg specs:

  • All legs can be installed with locking collars either at the top or bottom as the user desires.

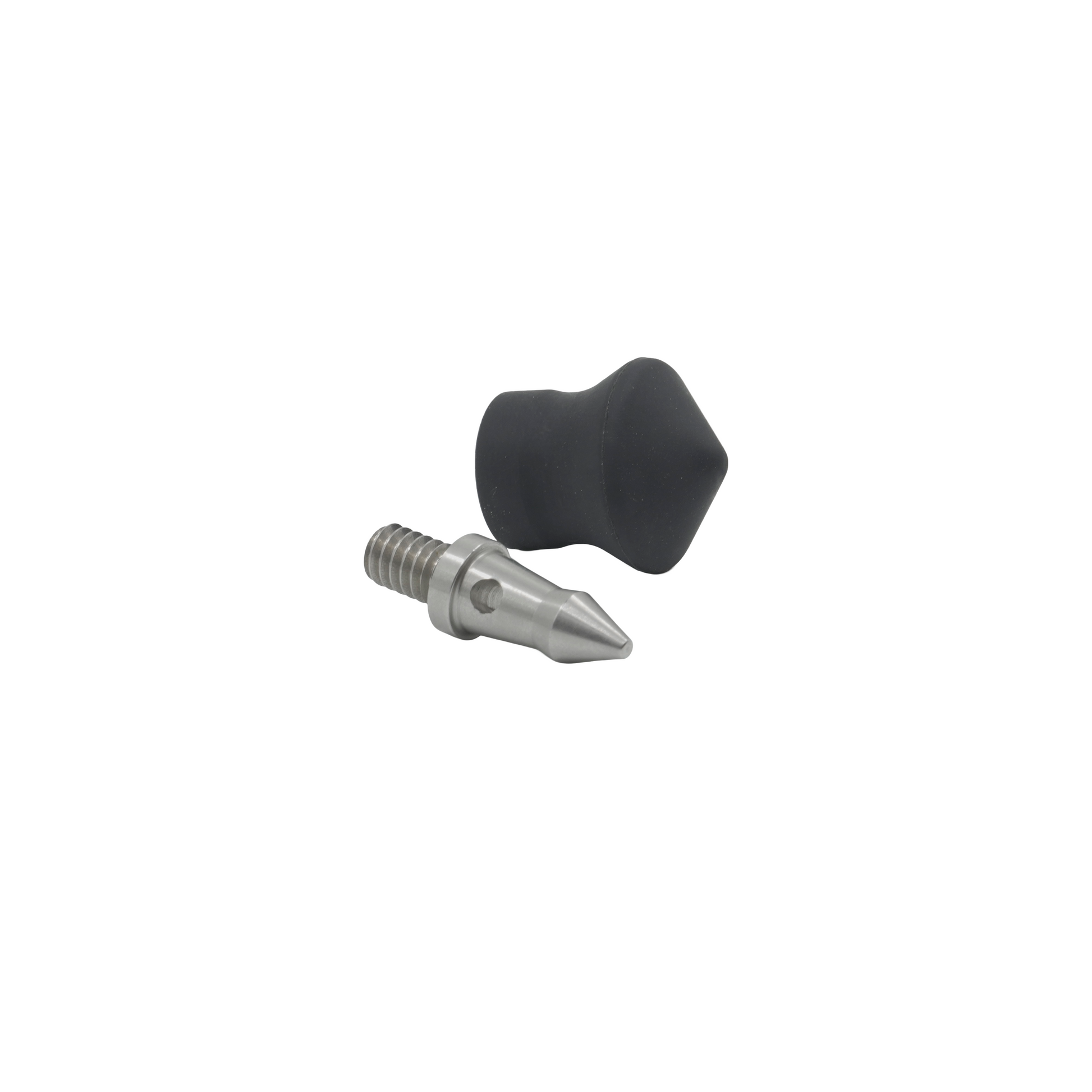

  • Each leg comes wth a foot spike and rubber cap.
  • Leg end threads are 1/4 UNC and are compatable with tripod heads and anything else with the corrosponding thread.

Specific specs:

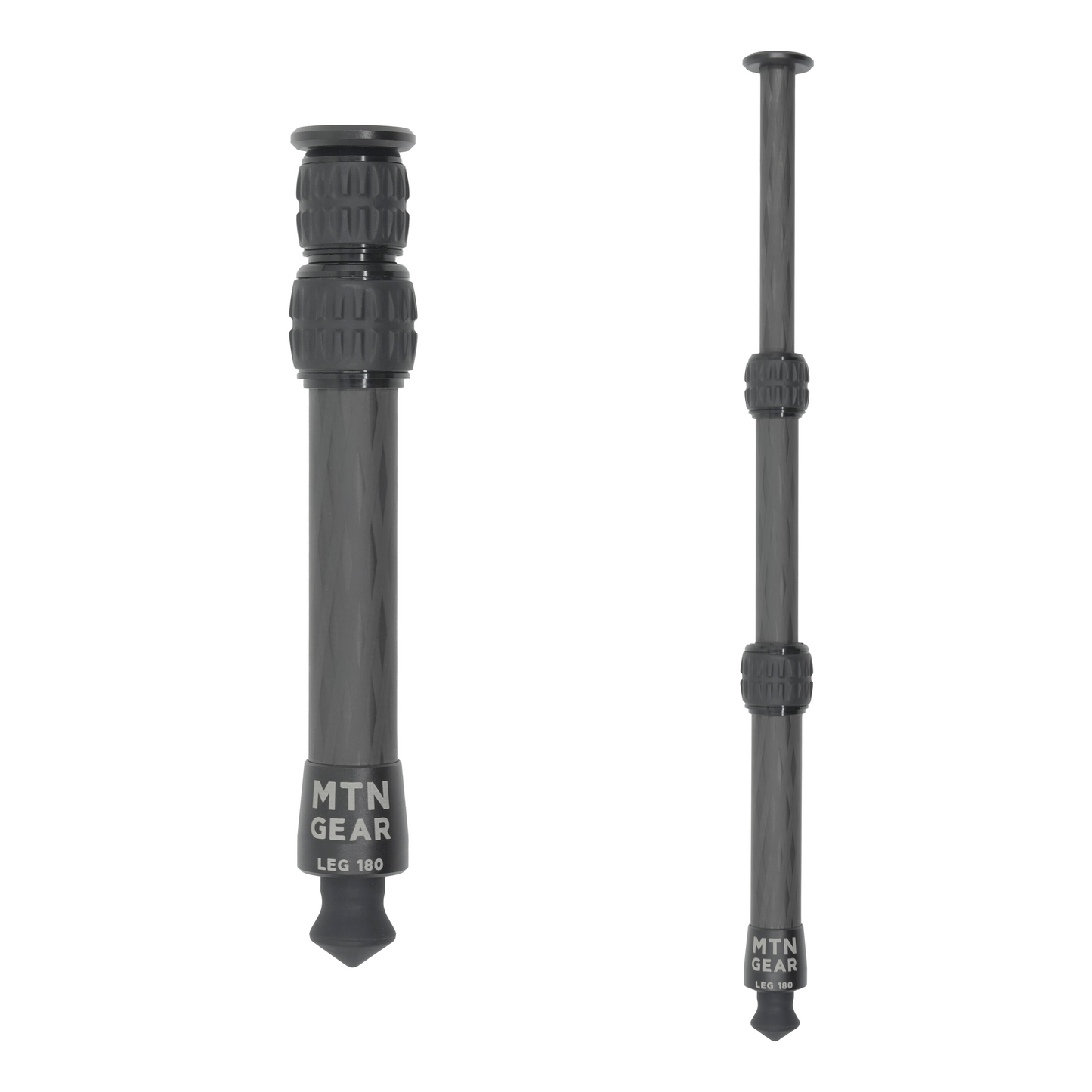

  • 180 - Weight with foot 115grams / 4oz - Tube diameters 22.05/18.65/15.25mm 0.86/0.73/0.6inch

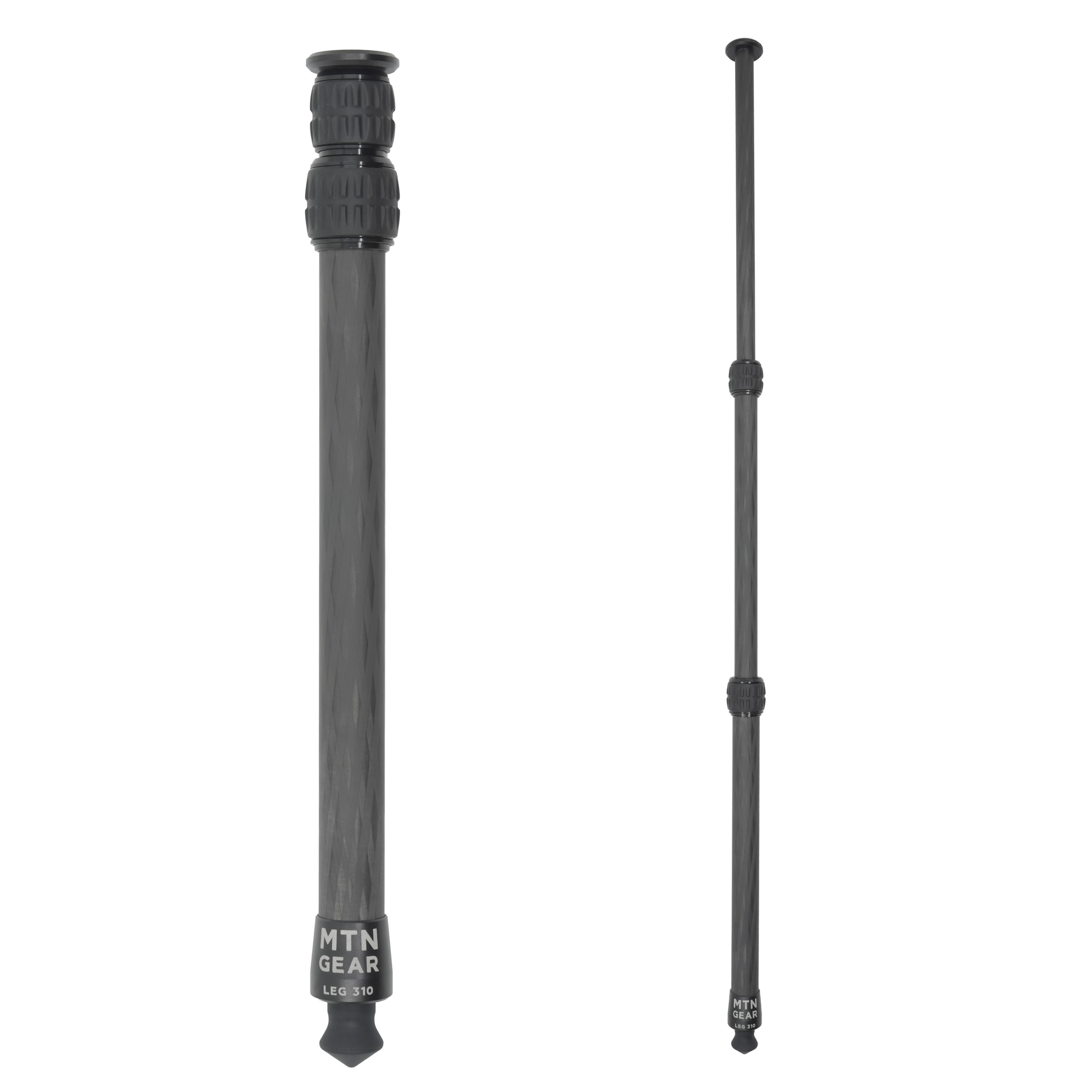

  • 310 - Weight with foot 145grams / 5.1oz - Tube diameters 22.05/18.65/15.25mm 0.86/0.73/0.6inch

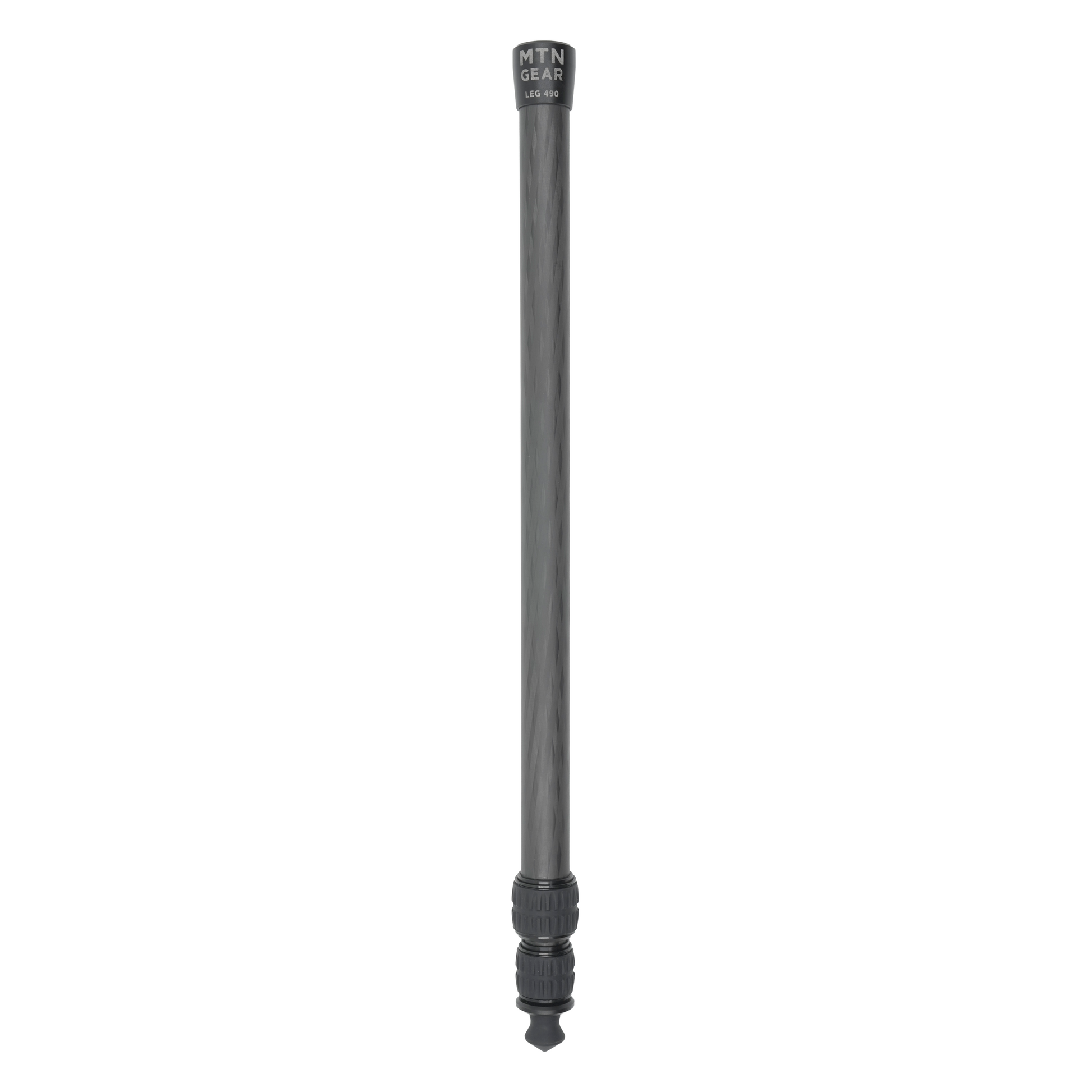

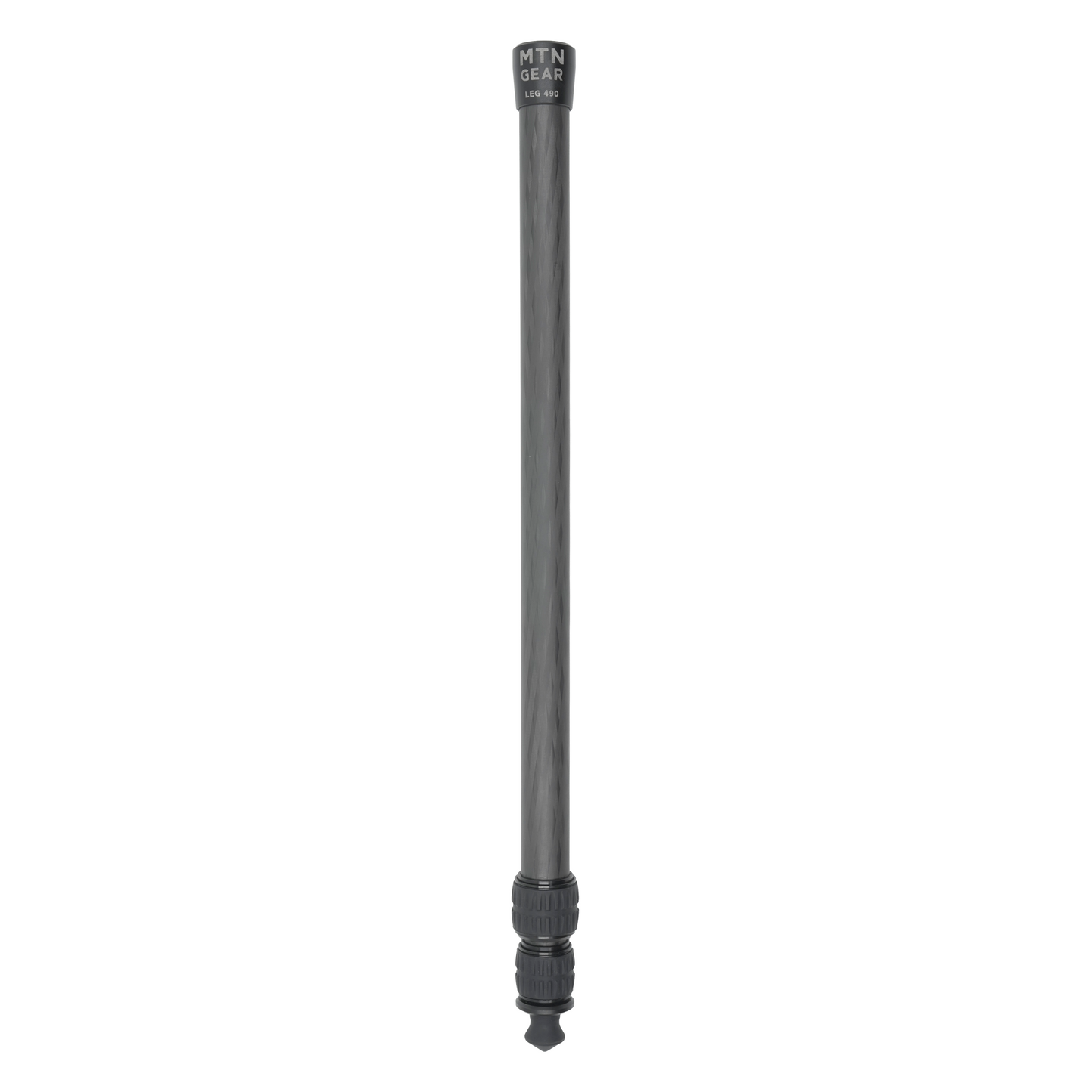

  • 490 - Weight with foot 230grams / 8.1oz - Tube diameters 25.5/22.05/18.65mm 1/0.86/0.73inch

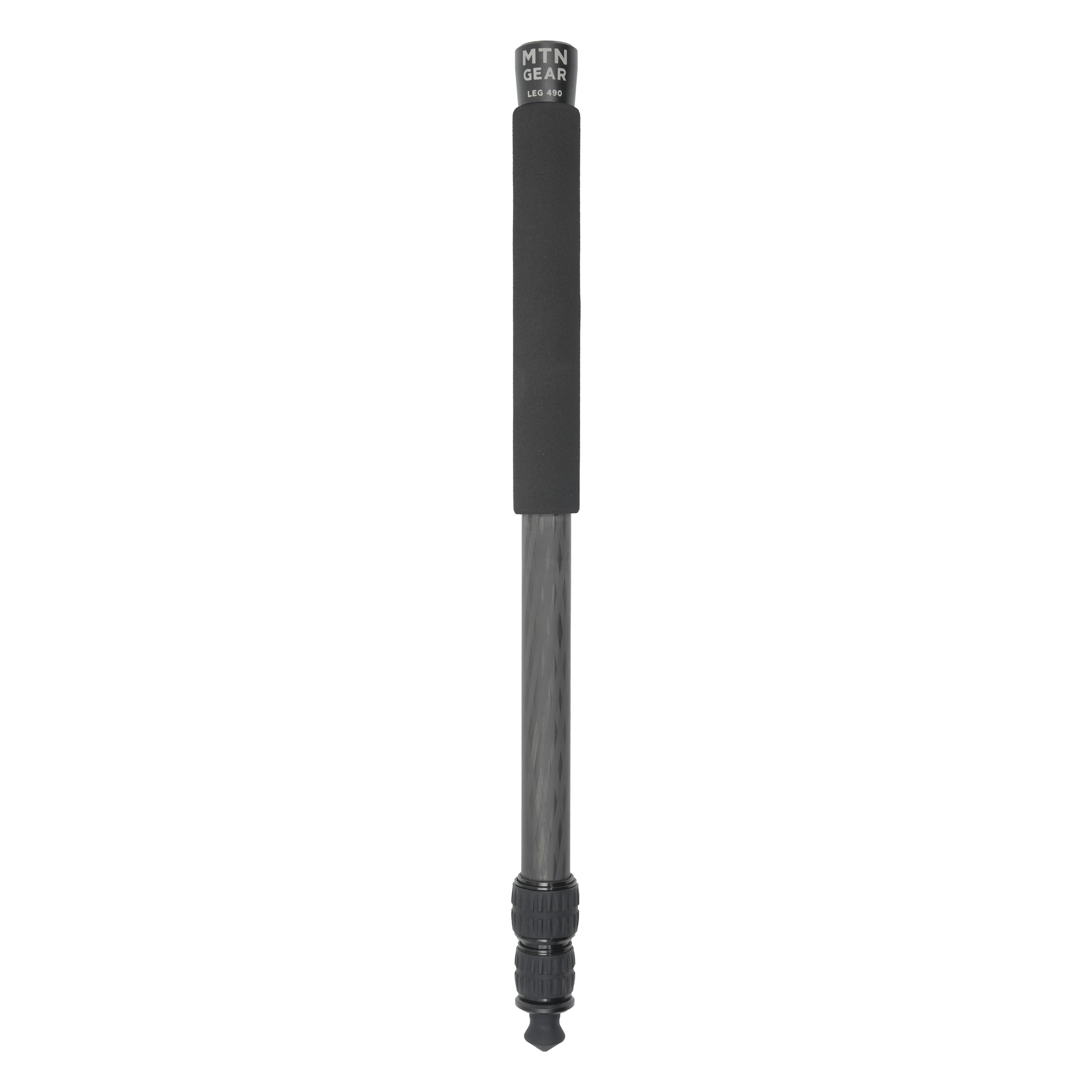

  • 490 Foam- Weight with foot 240grams / 8.5oz - Tube diameters 25.5/22.05/18.65mm 1/0.86/0.73inch

**Weights are with supplied foot spikes but lengths are not.**

View full details

Key Features

  • An unmatched 11 leg spread positions.
  • Our patent pending central disk allowing full ambidextrous leg spread adjustment.
  • Solid and near zero play spread and leg adjustment locking.
  • Easy and adjustable tilt tension adjustment.
  • Interchangeable head via ARM17s attachment pattern. This allows any head with a bolt spacing of either 21mm / 0.83" or 28mm / 1.1" to be attached. Note M5 threads.
  • Swappable and indexable leg attachment. This allows you to customize the leg length, orientation (i.e. what is top and bottom of leg) and index the leg every 45degrees which will be relevant to future ratch style legs.
  • Package includes both Rubber and claw feet options.



Specs

Stage Package include 180 carbon legs.

  • Stage package with 180 carbon legs:
    Weight: 735grams / 26oz.
    Min height: 55mm / 2.2".
    Max height: 530mm / 20.8".

Additional specs below of additional leg options.

  • Stage package with 310 carbon legs:
    Weight: 795grams / 28oz.
    Min height: 70mm / 2.75".
    Max height: 905mm / 35.6".
  • Stage package with 480 carbon legs:
    Weight: 975grams / 34.4oz.
    Min height: 90mm / 3.5".
    Max height: 1430mm / 56.3".

See Matt's overview of the Stage Bipod

Disclaimer

**Bipods do not come with picatinny rails as there are numerous options and a large portion of customers already have rails on their stocks**

By purchasing this product, you agree that MTNGear ARE NOT LIABLE from any misuse or other issues that arise during the use of our products, you will follow all applicable laws and regulations in your jurisdiction and indemnify MTNGear from any liability to yourself, third party or any regulatory body.
