Arca Swiss Rails

Arca Swiss Rails

$90.00 NZD
$90.00 NZD
Sale Sold out
Tax included.
Length

Product Barcode / SKU: 75732027

We now have a range of lightweight Arca Swiss Rails for use on stocks, spotters and cameras. Our rails are machined out to reduce weight and to be ergonomic enhancing grip when carrying your rifle and with reduced sharp edges.

Models

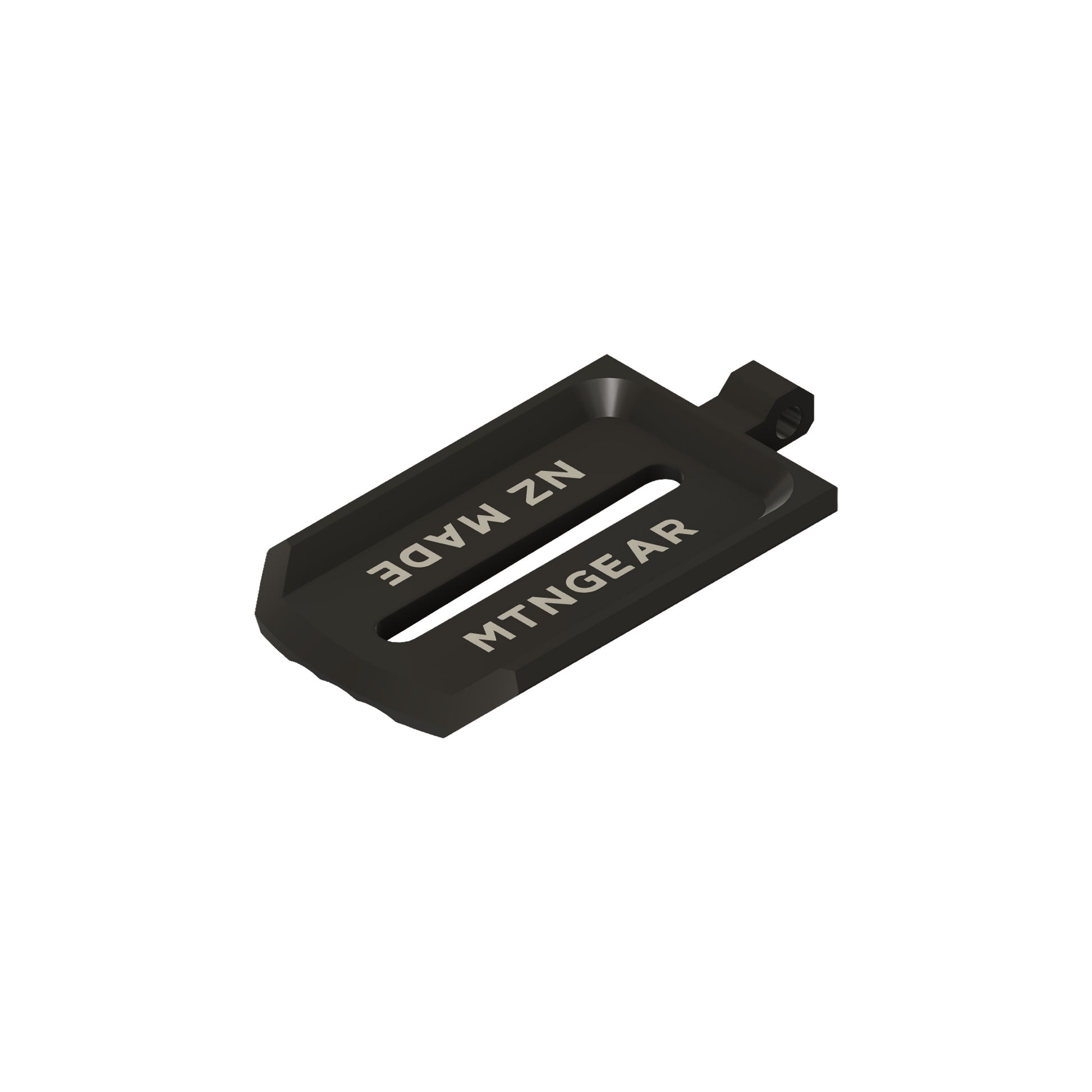

  • Forend ARCA Swiss rail with sling attachment. 22grams (0.8oz), Type III hard anodized 7075 aluminum alloy and mounting hardware.

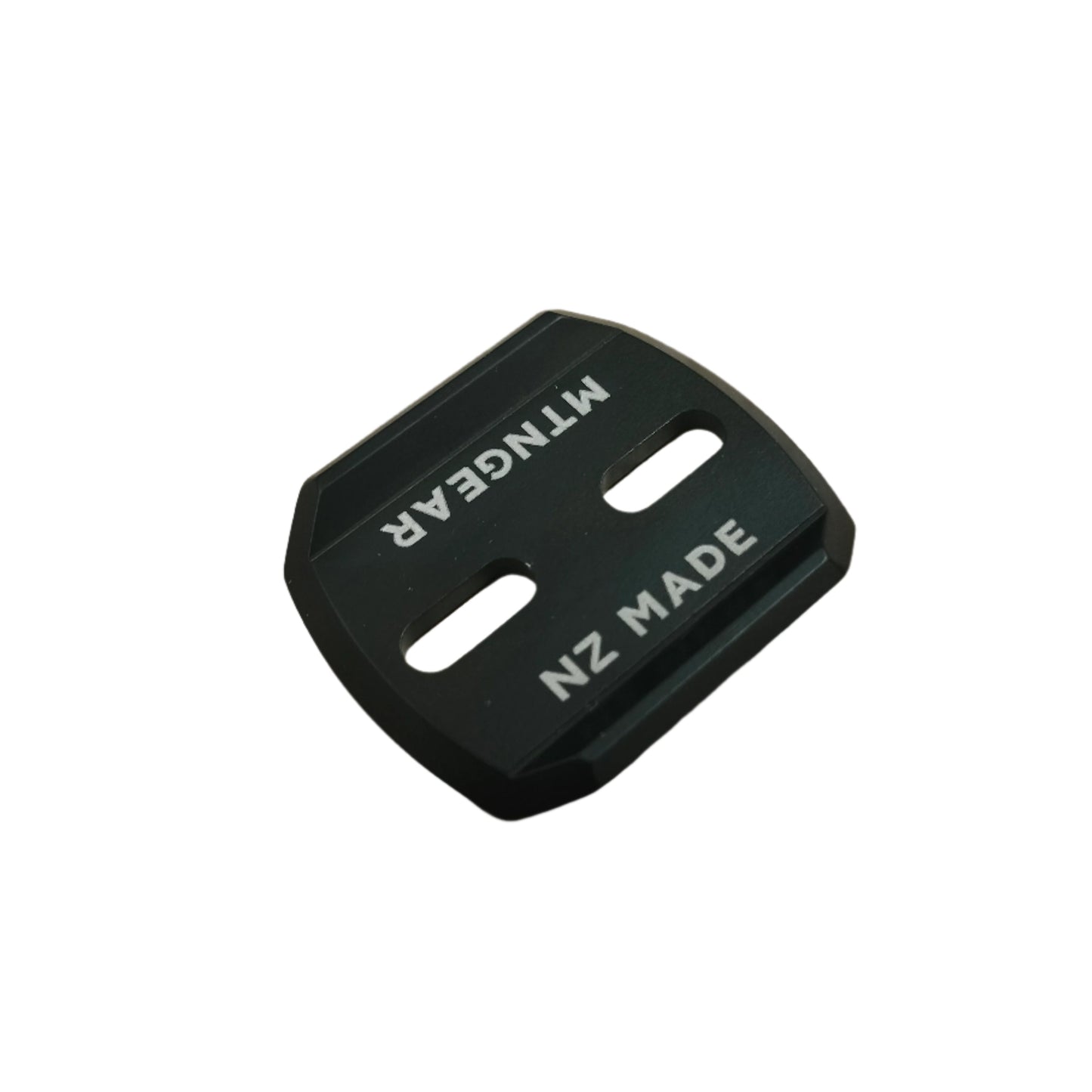

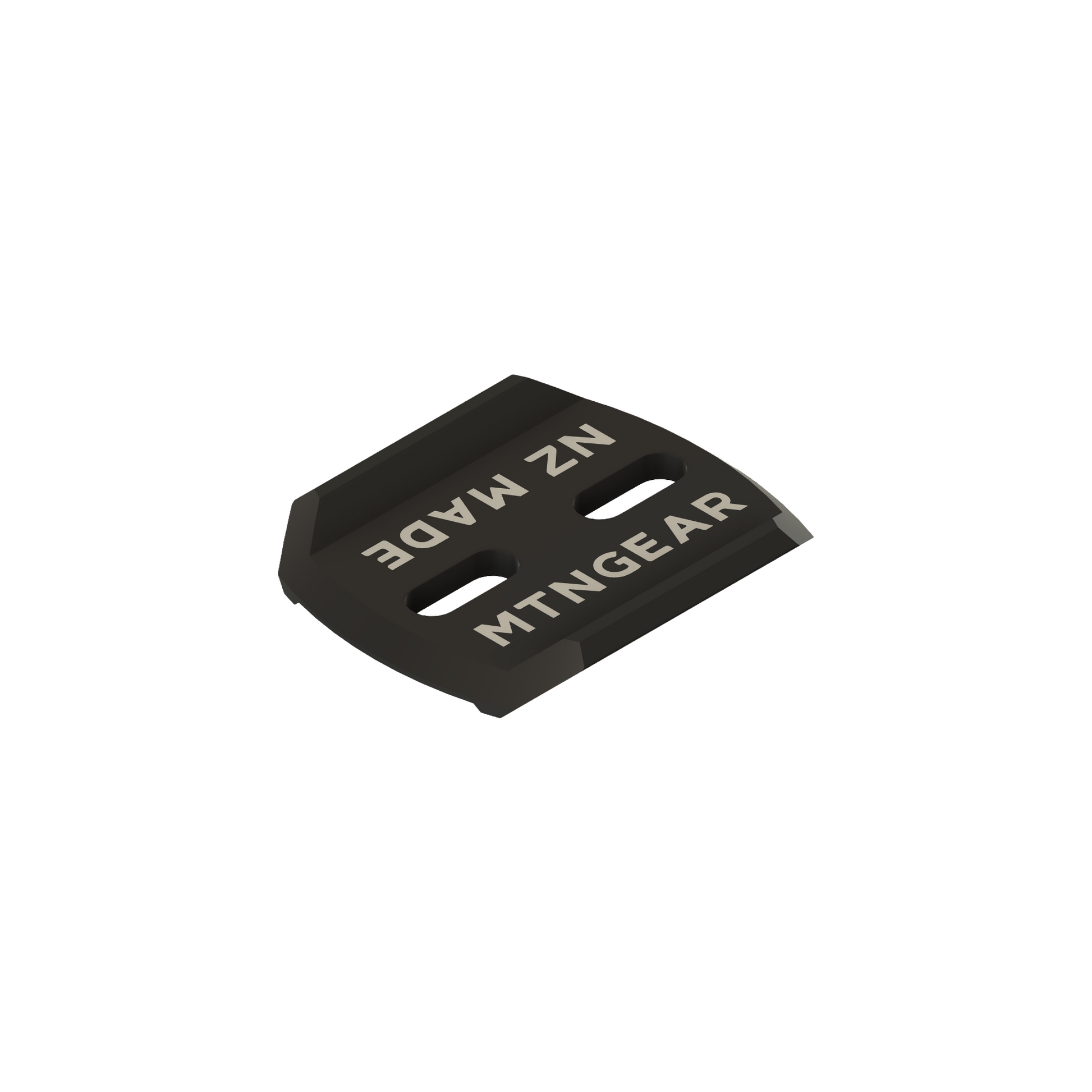

  • 45mm ARCA Swiss rail. 13grams (0.45oz), Type III hard anodized 7075 aluminum alloy and mounting hardware. (31.8inch)

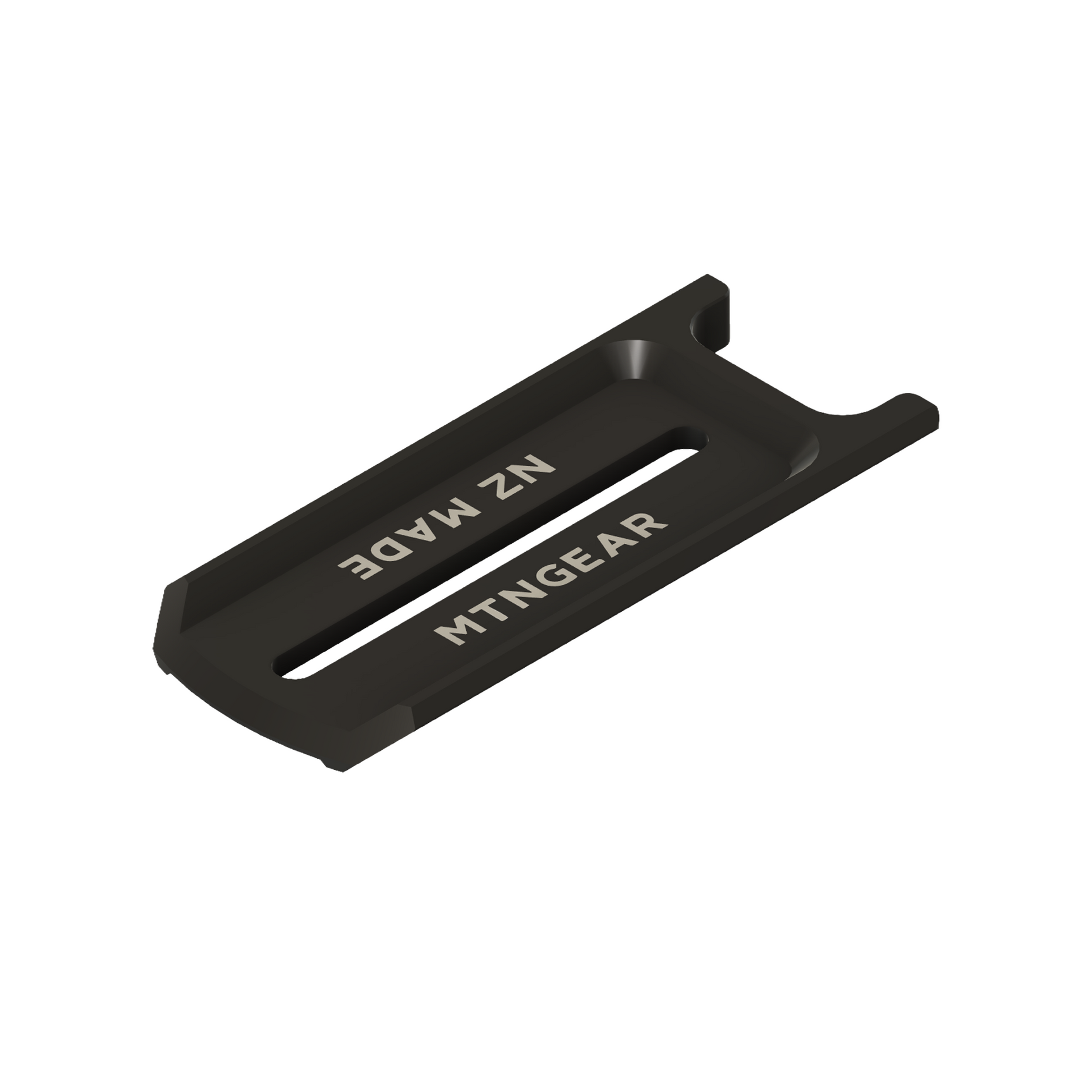

  • 90mm ARCA Swiss rail. 28grams (1oz), Type III hard anodized 7075 aluminum alloy and mounting hardware. (3.5inch)

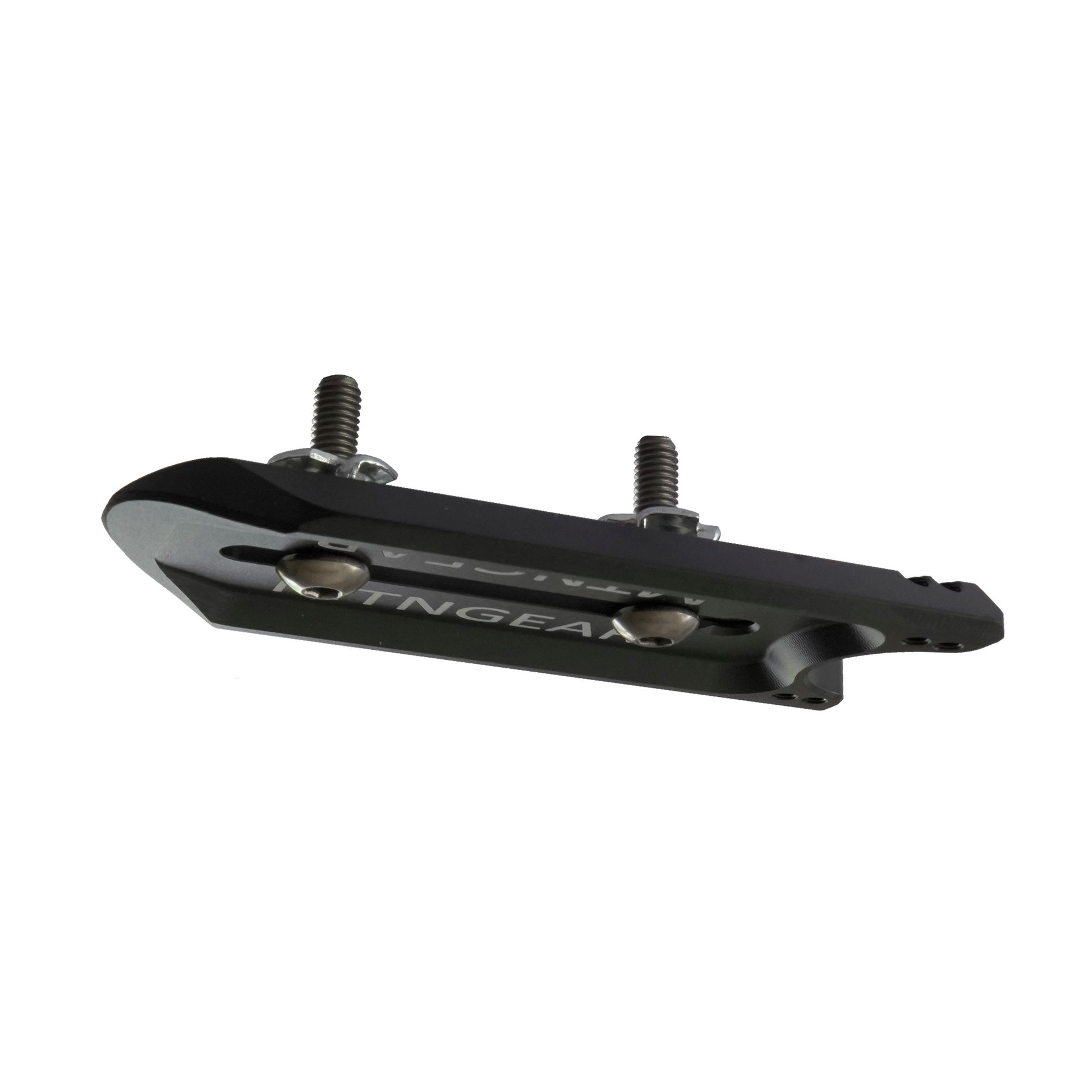

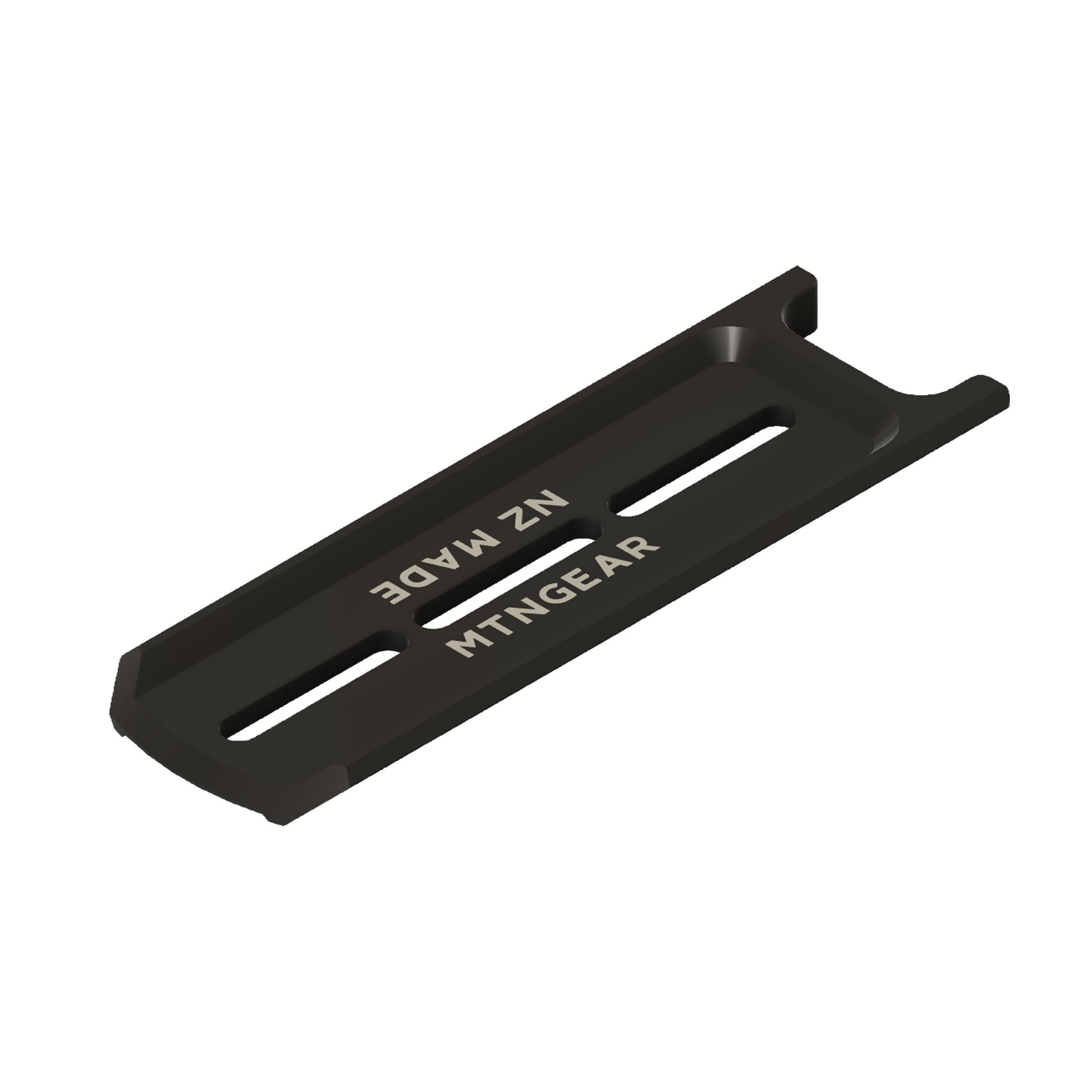

  • 120mm ARCA Swiss rail. 37grams (1.3oz), Type III hard anodized 7075 aluminum alloy and mounting hardware. (4.7inch)

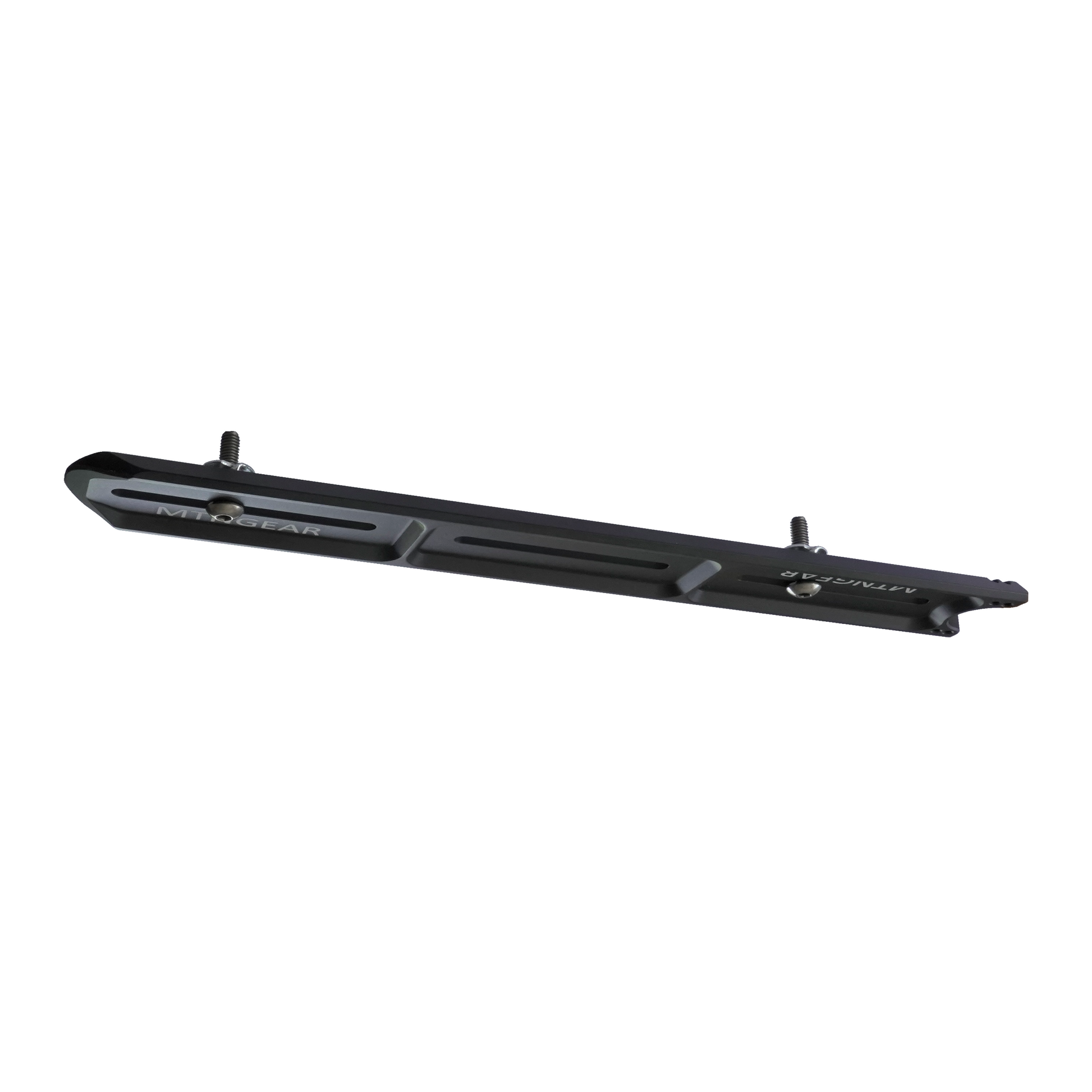

  • 260mm ARCA Swiss rail. 89grams (3.1oz), Type III hard anodized 7075 aluminum alloy and mounting hardware. (10.2inch)

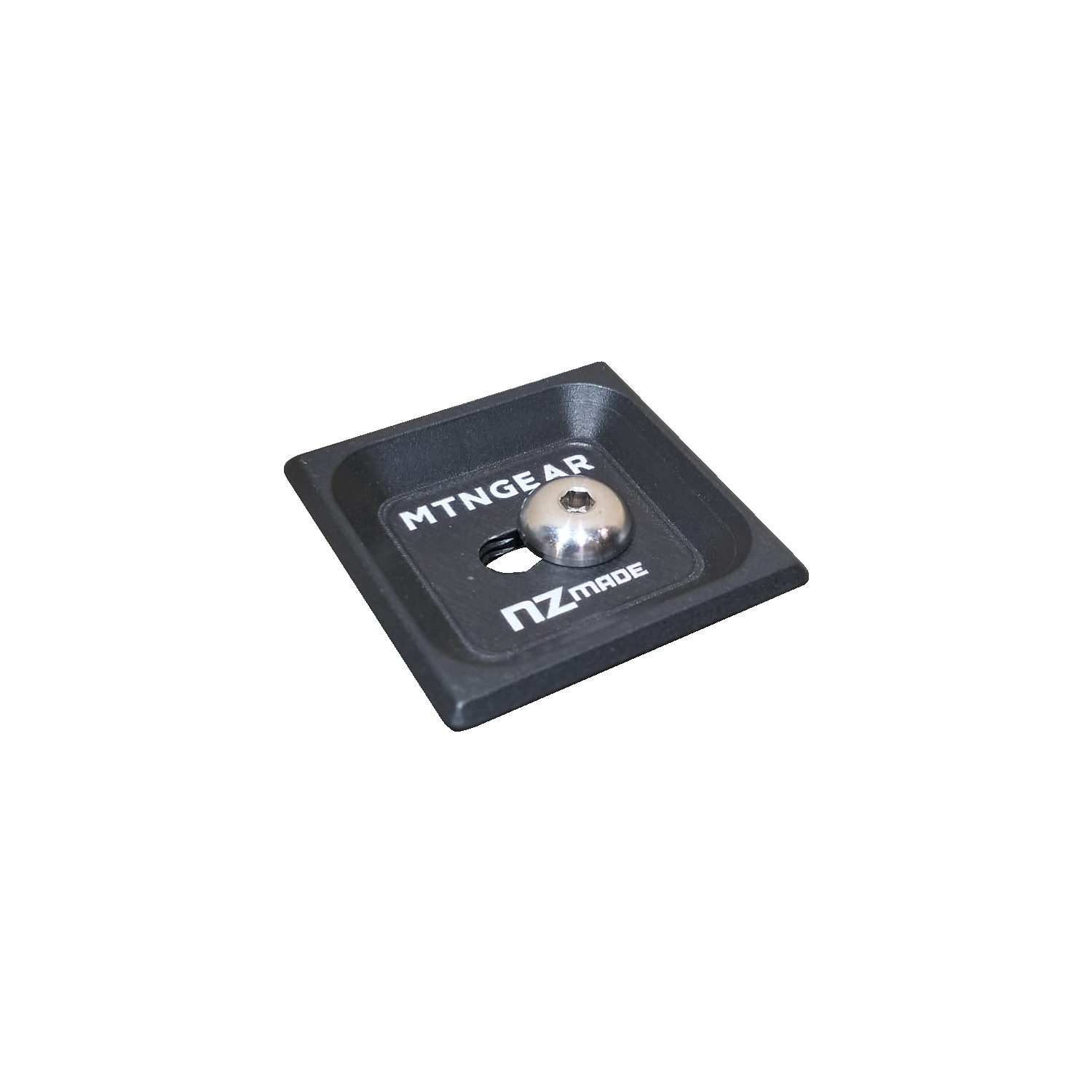

  • Camera multi directional ARCA Swiss rail. 14grams (0.49oz) including titanium bolt, Type III hard anodized 6061 alloy aluminum and 1/4-20 UNC titanium camera mounting bolt.

Stock rails both have notched end for mag well / action screw, include optional screws to stop attachment sliding back into mag well or off the back of the rail and tapered forend to lower profile and reduce snagging.

Our ARCA Swiss Rails are based on the RRS DOVETAIL STANDARD

View full details

Key Features

  • An unmatched 11 leg spread positions.
  • Our patent pending central disk allowing full ambidextrous leg spread adjustment.
  • Solid and near zero play spread and leg adjustment locking.
  • Easy and adjustable tilt tension adjustment.
  • Interchangeable head via ARM17s attachment pattern. This allows any head with a bolt spacing of either 21mm / 0.83" or 28mm / 1.1" to be attached. Note M5 threads.
  • Swappable and indexable leg attachment. This allows you to customize the leg length, orientation (i.e. what is top and bottom of leg) and index the leg every 45degrees which will be relevant to future ratch style legs.
  • Package includes both Rubber and claw feet options.



Specs

Stage Package include 180 carbon legs.

  • Stage package with 180 carbon legs:
    Weight: 735grams / 26oz.
    Min height: 55mm / 2.2".
    Max height: 530mm / 20.8".

Additional specs below of additional leg options.

  • Stage package with 310 carbon legs:
    Weight: 795grams / 28oz.
    Min height: 70mm / 2.75".
    Max height: 905mm / 35.6".
  • Stage package with 480 carbon legs:
    Weight: 975grams / 34.4oz.
    Min height: 90mm / 3.5".
    Max height: 1430mm / 56.3".

See Matt's overview of the Stage Bipod

Disclaimer

**Bipods do not come with picatinny rails as there are numerous options and a large portion of customers already have rails on their stocks**

By purchasing this product, you agree that MTNGear ARE NOT LIABLE from any misuse or other issues that arise during the use of our products, you will follow all applicable laws and regulations in your jurisdiction and indemnify MTNGear from any liability to yourself, third party or any regulatory body.
